Compact Ground Based Radar Surveillance 240W Low Power Consumption

Compact Military Radar System | 3.5km UAV Detection, ≤50kg Weight, 240W Low Power Consumption

Overview

The HYH 226X-1X3K-3D is a high-performance military surveillance radar engineered to detect, track, and neutralize micro/small UAV threats in critical zones. Combining X-Band frequency with Phased Array + Pulse Doppler technology, it delivers precise 3D tracking (azimuth, distance, altitude, speed) for drones up to 3.5km away. Designed for rugged mobility, it supports ground or vehicle-mounted deployment, making it ideal for securing prisons, military bases, borders, and high-profile events.

This supports low-altitude surveillance and interception systems by offering effective informational assistance. The radar is highly reliable for missions and can automatically capture targets, providing efficient monitoring of non-cooperative and high-threat targets in key areas.

Key Features

• Long-Range Detection:

  • 3.5km range (DJI Phantom, RCS≈0.01m²) | ≤150m minimum range.

• 360° 3D Tracking:

  • Full azimuth coverage (0°–360°) + 40° elevation for comprehensive airspace monitoring.

• Military-Grade Durability:

  • Operates in -40°C to +55°C | Rainproof, dustproof, sand-resistant, and corrosion-proof.

• Precision Targeting:

  • Distance accuracy: ≤10m | Azimuth/Elevation accuracy: ≤1.0° | Speed precision: ≤0.2m/s.

• Rapid Response:

  • High refresh rate (≥0.25 times/s) for real-time threat alerts.

  • Digital Beamforming (Receive and Transmit): Adaptive airspace coverage based on mission profiles.

    Compact and Integrated Design: Low-cost, high reliability, and high integration.

    Long Dwell Time: Superior clutter suppression capability.

    Customizable Operational Waveforms and Bandwidths:

Technical Specifications

Applications

• Military & Defense: Base protection, border surveillance, and drone threat mitigation.

• Critical Infrastructure: Airports, prisons, government facilities, and VIP zones.

• Event Security: Large-scale public gatherings, exhibitions, and high-risk venues.

Why Choose HYH 226X-1X3K-3D?

• MIMO Technology: Multi-Input Multi-Output system enhances detection reliability.

• All-Weather Ready: Built to withstand extreme environments, from deserts to arctic conditions.

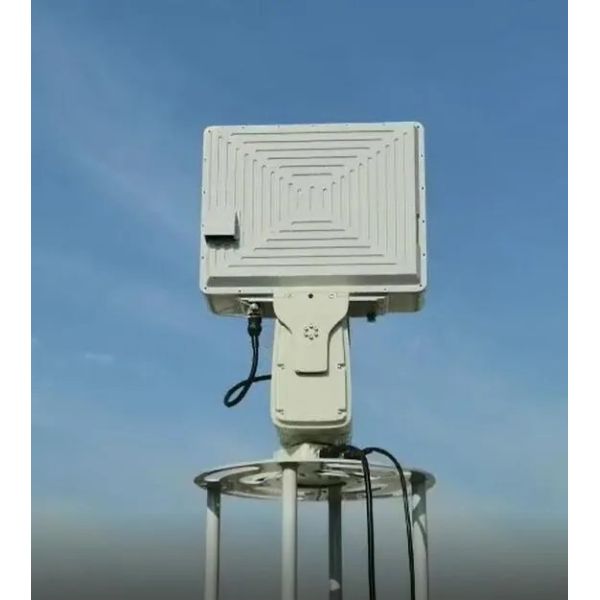

• Turntable Design: Radar array + turntable ensures seamless 360° scanning.

Compliance & Warranty

• IP Rating: Dust, moisture, and salt-resistant for coastal/maritime use.

• Storage Tolerance: -45°C to +65°C (non-operational).

•
•

Compact Ground Based Radar Surveillance

Compact surveillance radar system

Low Power Ground Based Radar Surveillance

Compact Ground Based Radar Surveillance 240W Low Power Consumption Images
